Adjustable Rear Outrigger Arms R4 – Lancer EVO X

$1,099.00

In stock
Buy it now
Brands:
SKU: was-811

Mitsubishi Lancer EVO X – REAR LONGITUDINAL ARM (Adjustable Rear Outrigger Arm)

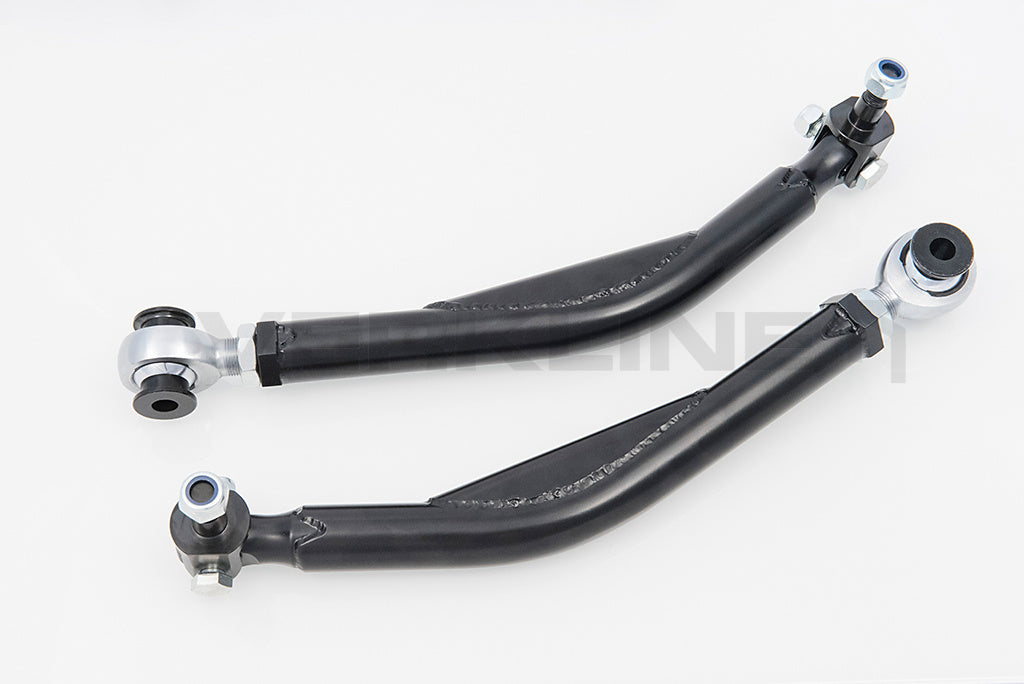

The kit consists of all the parts visible in the pictures:
– Two rear light steel T45 35 mm outrigger wishbones (left + right)
– Two arm fixing C45 steel mounts
– Two M22 rod ends solid kevlar (motorsport rod ends)
– Two M22 half-size screw locking nuts
– Two uni-ball bearings (motorsport rod ends)
– Eight spacer sleeves for assembling of the arms in the rear subframe

Features:
– R4 spec rear suspension arm
– Comes preassembled ready for fitment in the car
– R4 rally kit compliant (meats FIA homologation rules for Lancer EVO X)
– Same rod end suppler as for original R4 kit
– Can be used with standard rear chassis and uprights pickup points
– Greater strength over OEM wishbones

Technical details
– Full 3D CAD designed
– FEA tested and additional reinforcement to the original design was made
– Manufactured from T45 steel
– Powder painted black

Wishbones are powder painted in black as standard.

lancer-evo-x-r4-rear-longitudinal-arm-CE114-117

Rear Longitudinal Arm ( CE114-117 ) – 2 pcs
pcs
1 CE114-168 Rear Fork on hub 1
2 RG14MTE.MM29 Rodobal 29-14 1
3 RM22XE.C0 Rodobal M22x1,5 1
4 CE114-186 Complete longitudinal rod 1
5 CE114-182 Longitudinal link adapter on frame 2
6 CE114-185 Longitudinal link adapter on chassis 2
9 CE114-202 Nut M22x1.5 1
10 Seeger-SB29 Seeger SB29 1
Weight 6000 g
